This article provides illustrations for navigating the patient consult screen.

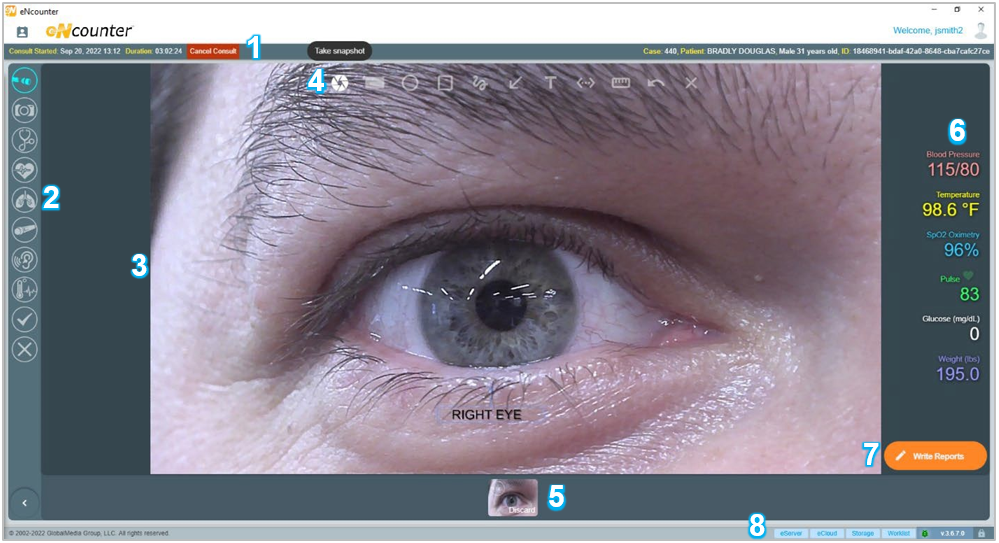

The following image and table indicate the function of each feature available on the consult screen.

Consult Screen Features

No.	Feature	Description
1	Header	• Displays the date and time of the consult initiation, consult duration, and patient-specific information. Click Cancel Consult, to discard all consult information and return to the home screen.
2	Device Panel	Lists the integrated devices licensed for use in the eNcounter application. See Table 3 for more information. Note: The icons displayed on the device panel will be limited when performing an Audiology or Dental consult. The exam camera icons are only displayed when the corresponding devices are connected to the workstation.
3	Viewing Pane	• Viewing area where all video feeds, images, and reports are displayed.
4	Imaging Toolbar	• Displays the Take Snapshot and content label icons
5	Evidence Tray	• Appears when an image, video, or report is captured. Allows users to manage the images and reports created during the consult. Click Discard on the content preview tile to delete it.
6	Vitals Overlay	• Lists the patient’s vital signs information.
7	Write Report	• Displays the consult report panel. The panel allows users to review, edit and generate the consult report.
8	Footer	• Displays copyright information, current software version number, connectivity status indicators, and session lock icon.

The following tables indicate the functions of each icon that appears on the consult screen.
Device Panel icons, located on the left side of the screen:

Device Panel Icons

Table 5 Imaging Toolbar Icons

Icon	Function
	Takes a snapshot of the image displayed in the viewing pane, including any labels and measurements. If a snapshot is displayed, clicking this icon again will create a new snapshot in the evidence tray with any newly added labels and measurements.
	Video Format Fill: Adjusts the view of the camera stream by toggling between full-screen and a consolidated view.
	Label: Draws a circle/ellipse on the displayed image or video.
	Label: Draws a square/rectangle on the displayed image or video.
	Label: Draws a free-form line on the displayed image or video.
	Label: Draws a single-capped arrow on the displayed image or video.
	Label: Allows user to add text on the displayed image or video.
	Measurement selection.
	Measurement: Draws a double-capped arrow showing current calibrated measurement.
	Measurement: Draws a capped line showing current calibrated measurement.
	Measurement: Draws a capped gap showing current calibrated measurement.
	Measurement Calibration selection.
	Calibration: Adds new calibration.
	Calibration: Displays current list of saved calibrations (can save 10 max), including the current default.
	Erases all labels added. If viewing a snapshot, it will only erase the last label added to the snapshot. Clicking the icon again will continue to erase the labels on the snapshot in reverse order.
	Erases all labels added. If viewing a snapshot, it will only erase labels newly added to the snapshot.

Icon	Function
	3rd party cameras (non-GlobalMed). This is only displayed if plugged into workstation.
	Launch Stethoscope module. Only enabled if licensed.
	Launch ECG module. Only enabled if licensed.
	Launch Spirometry module. Only enabled if licensed.
	Launch Ultrasound module. Only enabled if licensed.
	Launch Audiology module. Only enabled if licensed.
	Access Vital Signs Panel. Only enabled if licensed.
	Otoscope camera. Only displayed if plugged into workstation.
	TotalExam 2 HD camera. Only displayed if plugged into workstation.
	TotalExam 3 camera. Only displayed if plugged into workstation.
	Expand and Collapse Device Panel
