ClearProbe® Quick Start Guide

  • Updated

TotalVitals®

Quick Start Guide

This article explains general operation of the ClearProbe® machine within eNcounter/CapSure.



ClearProbe®: SimpliVue (Ultrasound)

  1. Ensure Simplivue is selected in the device settings.
  2. Insert the ClearProbe cable into a USB port.

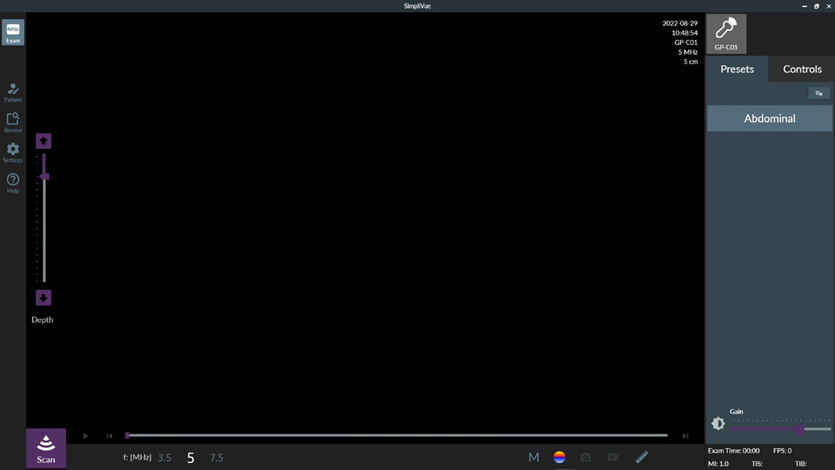

  3. Select the Ultrasound Icon on the Device Panel in eNcounter to launch the ultrasound software.

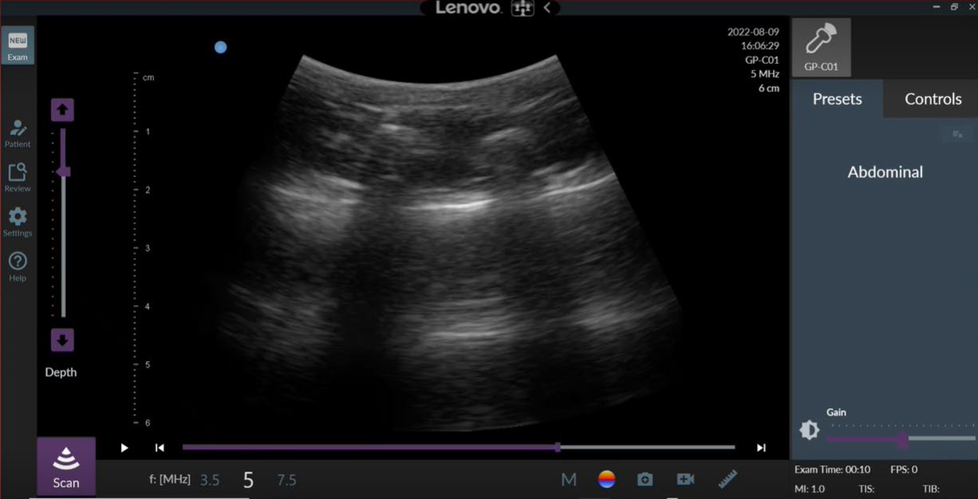

  4. Apply the ultrasound gel to the probe and press the button on the probe or click Scan to begin an ultrasound reading.

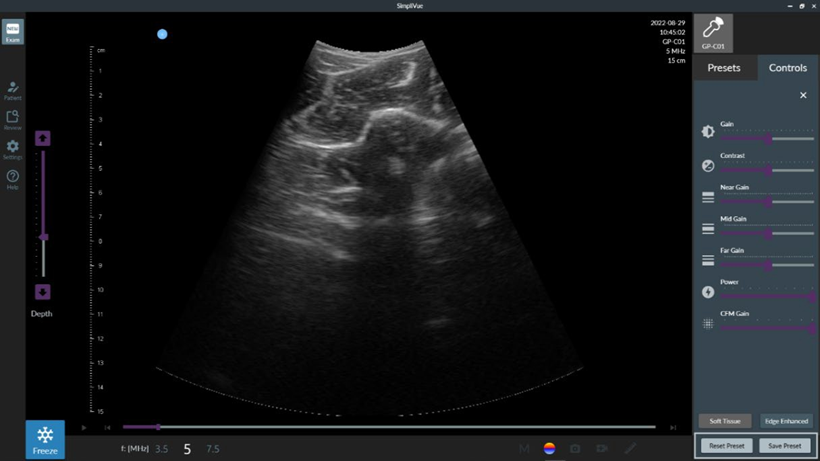

  1. Click the button on the probe or click Freeze to capture a still frame image.

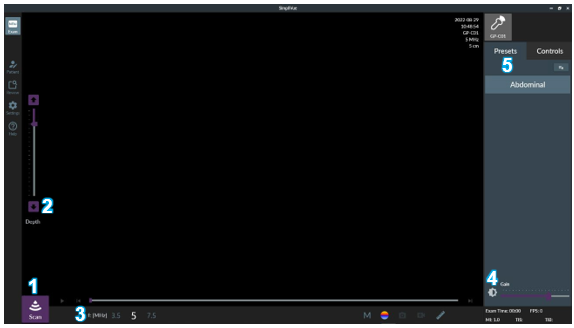

  1. The following image and corresponding table indicate the function of each feature that is available on the Simplivue ultrasound screen.

Icons/Features

No.FeatureDescription
1Scan•     Initiates the ultrasound
2Depth•     Adjusts the image depth
3Frequency•     Allows users to adjust the probe operating frequency.
4Gain•     Adjusts the brightness of the image displayed.
5Preset Panel•     Allows users to select from the list of display setting presets that were previously saved on the Controls Panel.

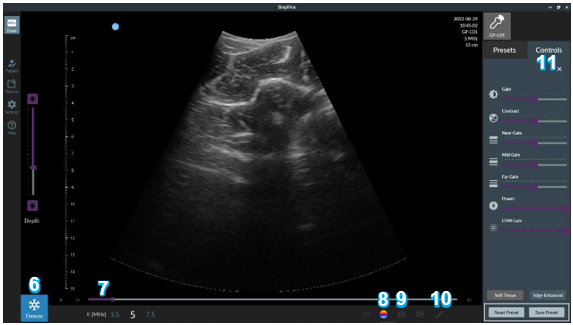

SimpliVue Icons/Features (continued)

No.FeatureDescription
6



Freeze

•     To take a still frame of the ultrasound image, utilize the Freeze Button in the lower left corner of the software interface or press the button on the side of the ultrasound device.
7



Playback Functions

•     Allows users to examine ultrasound recording. The user can Play/Pause recording as well as use the playback bar to pinpoint a specific part of the recording.
8CFM (Color Flow Mapping)•     Allows users to view a multi-colored map depicting the directionality of fluid/blood flow.
9Save Image•     Saves the still frame with any added annotations and exports it to the evidence tray in eNcounter.
10







Annotations

  • Access a toolbar that allows users to select from multiple tools for labeling ultrasound images.
  • Note: Pressing the Freeze Button or Image capture button on the ultrasound device will erase any labels that were made and will take a new freeze frame image. To save a freeze frame image with the labels, the user must select the Save Image icon. Then enter a name for the image and click

save.

11



Controls Panel

  • Allows users to adjust various aspects of how the ultrasound image is displayed.
  • Allows users to save/name a custom preset of display settings.
  1. To save and export a still frame image of the ultrasound that includes labels, the user must select the Save Image icon.
  2. Enter a name for the image and click save.
  3. The saved images are displayed in the Evidence Tray of the Consult Screen and can be viewed in the Consult Report.
