ClearSteth: Wired (RNK) Stethoscope Configuration (eNcounter/CapSure)

  • Updated

ClearSteth

Wired (RNK) Stethoscope Configuration

This article explains how to configure the wired (RNK) stethoscope within eNcounter and CapSure.



Launching ClearSteth and Initial Configuration within eNcounter/CapSure

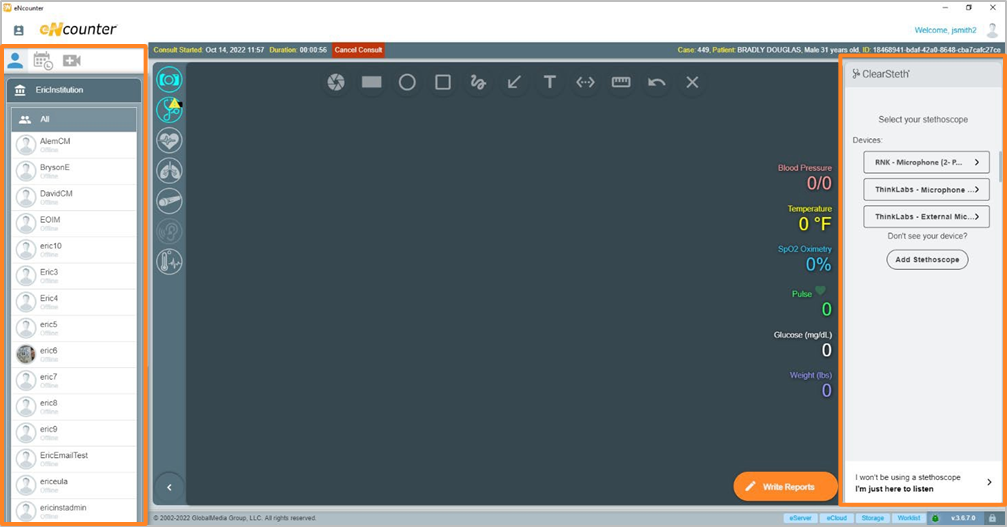

  1. Click the stethoscope icon on the eNcounter device panel to display the conferencing and ClearSteth panels.
  2. If a stethoscope device is not configured, the user will be prompted to configure a stethoscope by selecting a detected device under the Devices section or to configure a listening device by selecting the option that reads "I won't be using a stethoscope I'm just here to listen".

Configuring Wired Stethoscope (RNK)

  1. From the initial configuration screen, select the applicable wired stethoscope from the list of detected devices under the Devices section.
  2. After selecting a detected stethoscope device, an audio verification prompt will be displayed. After verifying the stethoscope is transmitting audio, click Continue.

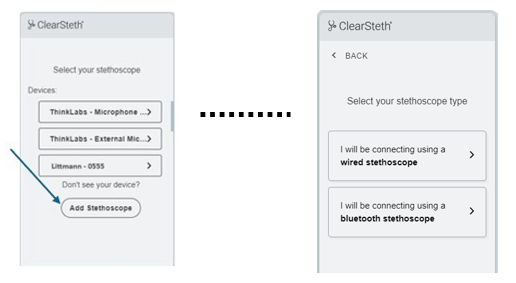

  1. If the desired stethoscope was not detected initially or if a new stethoscope device needs to be added, click the Add Stethoscope button, and select the wired stethoscope option.

  1. After a stethoscope has been configured use the Stethoscope Settings   Icon to modify or add a stethoscope configuration.


 Configuring ClearSteth for Listening to Incoming Stethoscope Audio

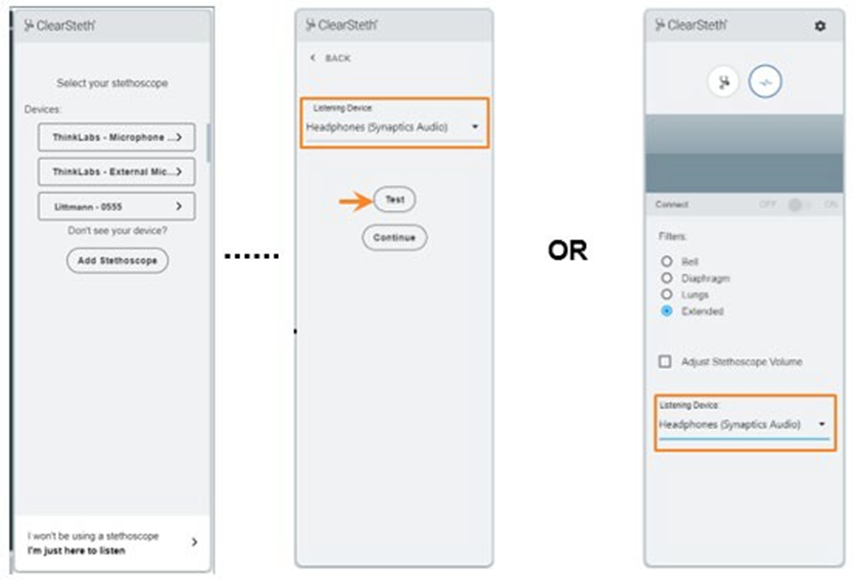

  1. From the initial configuration screen, select the prompt at the bottom that reads "I won't be using a stethoscope I'm just here to listen".
    • Select the applicable audio device under the ‘Listening Device’ section.
      • The ‘Test’ button is available to verify the listening device is receiving audio. Click ‘Continue’ to proceed.
    • If the initial configuration screen is no longer available there is also a ‘Listening Device’ section at the bottom of the ClearSteth home screen.

Connecting with End Users

  1. To initiate a meeting, select the applicable user from the contacts tab on the conferencing panel to view the user’s contact options.
  2. Depending on the end users supported communication configuration, click the video or audio-only conference call icon to connect with the end user.
  3. Once connected, the end user’s conferencing window will appear.

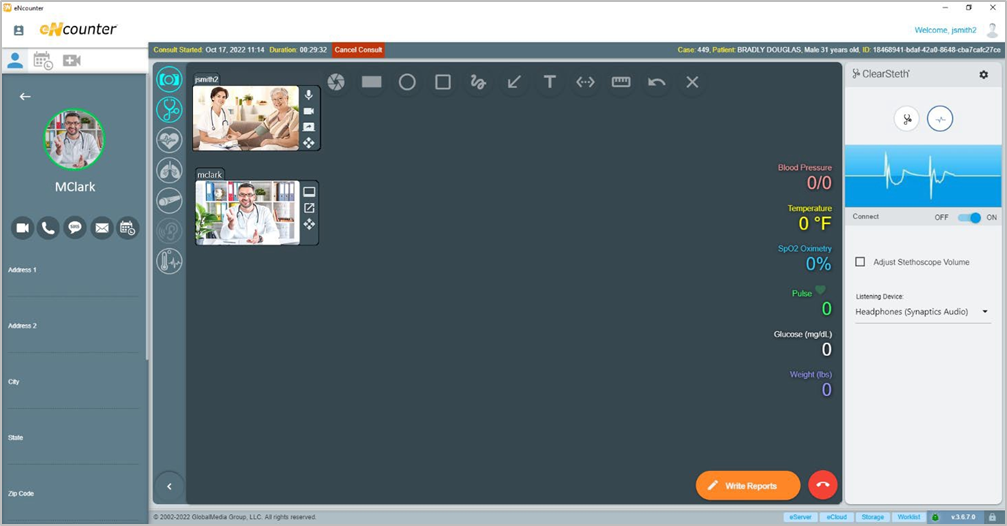

  4. To begin sharing stethoscope sounds, switch the ‘Connect’ toggle to ON. An audio waveform will be displayed when the stethoscope is active.

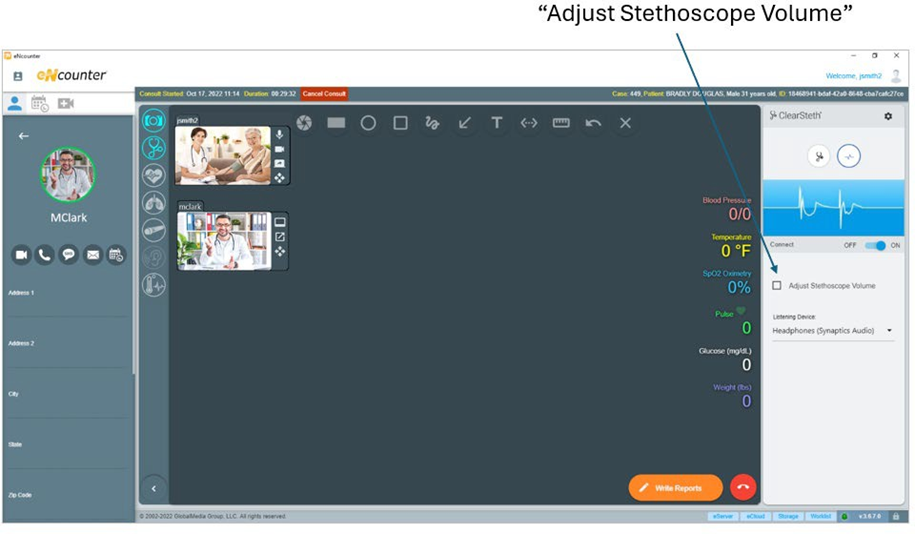

Select “Adjust Stethoscope Volume” and adjust to the desired volume to successfully hear auscultations on your device.

  1. To discontinue the transmission of stethoscope audio, switch the ‘Connect’ toggle to OFF.
  2. To end the conference call, click the red phone icon.

Using Stethoscope Filters

ClearSteth offers various audio filters that isolate specific audio frequency ranges to allow users to better hear the organs systems of interest.

Clinical evidence indicates that heart sounds begin below the audible threshold of 20 Hz and do not exceed 1000Hz - with most being heard between the 20-500Hz range. High frequency heart sounds, such as murmurs of aortic insufficiency and mistrial insufficiency, are better heard with the use of a diaphragm that filters out the low frequency components of other heart sounds. Lung sounds are classified into the following groups: Low (under 100 Hz), middle (200-600Hz), and high frequency (600-1200Hz). These categories include the majority of clinically relevant respiratory sounds (crackles, wheezes, rubs, etc), even the highest pitched wheezes rarely exceed 2000 Hz.

  1. RNK Stethoscope Filters - users on the receiving end of an RNK stethoscope call will be presented with 4 options for filtering the stethoscope audio.

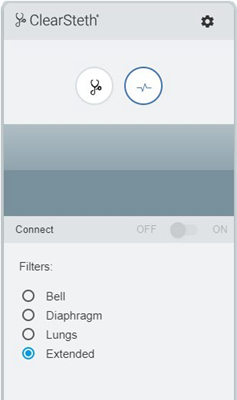

    • User can access these filters below the Connect toggle switch.

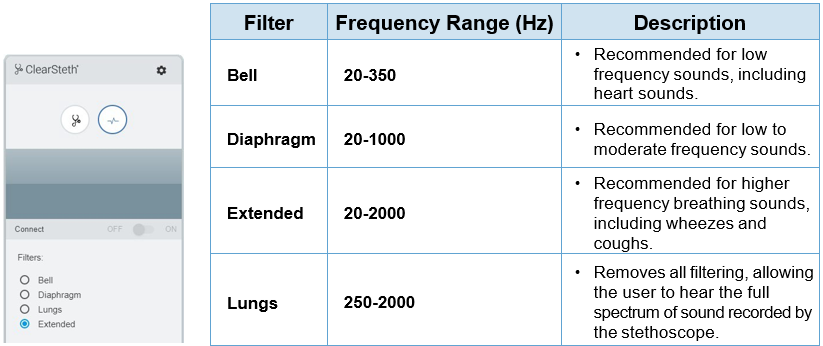

RNK Stethoscope Filters
